Wear resistant customized Silicon carbide & Alumina tiles, Ceramic Liner, tiles, plates, blocks, lining, pipes

Short Description:

Pattern of angle impact abrasion Low angle sliding abrasion When flow of abrasive material hits a wear surface at a shallow angle or passes parallel to it, the type of wear that occurs in friction is called sliding abrasion. Advanced silicon carbide ceramics provide wear resistance and corrosion resistance ceramic tiles and lining. These products have been proven wear of equipment in conveying, processing, and storage process. Our tiles can be produced with thickness from 8 to 45mm. it is im...


  • Port: Weifang or Qingdao
  • New Mohs hardness: 13
  • Main raw material: Silicon Carbide
  • Product Detail

    ZPC - silicon carbide ceramic manufacturer

    Product Tags

    Pattern of angle impact abrasion Low angle sliding abrasion
    When flow of abrasive material hits a wear surface at a shallow angle or passes parallel to it, the type of wear that occurs in friction is called sliding abrasion.

    Advanced silicon carbide ceramics provide wear resistance and corrosion resistance ceramic tiles and lining. These products have been proven wear of equipment in conveying, processing, and storage process. Our tiles can be produced with thickness from 8 to 45mm. it is important to ensure that you can get the required products. SiSiC: Moh’s hardness is 9.5 (New Moh’s hardness is 13), with excellent resistance to erosion and corrosion, excellent abrasion – resistance and anti-oxidation. It is 4 to 5 times stronger than nitride bonded silicon carbide. The service life is 5 to 7 times longer than alumina material. The MOR of RBSiC is 5 to 7 times that of SNBSC, it can be used for more complex shapes. Wear resistant ceramic lining is conductive to make improvement of the production performance, the working efficiency, the reduction of maintenance costs and the increase profits.

    Precision ceramics have material knowledge, applied expertise and engineering skills. This can effectively ensure that the best solutions are offered to our customers. Silicon carbide ceramic tiles and lining are often used in applications such as cyclones, tubes, chutes, hoppers, pipes, conveyor belts and production systems. In the system, there are moving objects sliding on the surface. When the object slides on a material, it slowly wears the parts away until nothing remains. In high wear environments, this can happen frequently and cause a lot of expensive problems. The main structure is retained by using a very hard material, such as silicon carbide ceramics and alumina ceramics as a sacrificial lining. At the same time, silicon carbide ceramics can endure longer wear before it needs to be replaced, the silicon carbide ceramic service life is 5 to 7 times longer than alumina material .

    Wear Resistant Silicon Carbide Ceramic Tiles & Lining Properties:
     Chemical resistant
     Electrically insulative
     Mechanical erosion & Abrasion resistant
     Replaceable

    Advantages of Ceramic Wear Resistant Tiles & Linings:
     Can be used where tight tolerances or thin linings are required
     Can be used to resurface existing wear prone areas
     Can be used with multiple attachment methods like welding and adhesives
     Custom designed for specific applications
     Highly corrosion resistant
     Lightweight wear reduction solution
     Protects moving parts that are subject to high wear environments
     Significantly outlasts & outperforms wear reduction solutions
     Ultra-high maximum use temperature of up to 1380°C

    IMG_20180723_154430_副本2  mmexport1532414574091

    1  mmexport1527604875015sunshine3.1

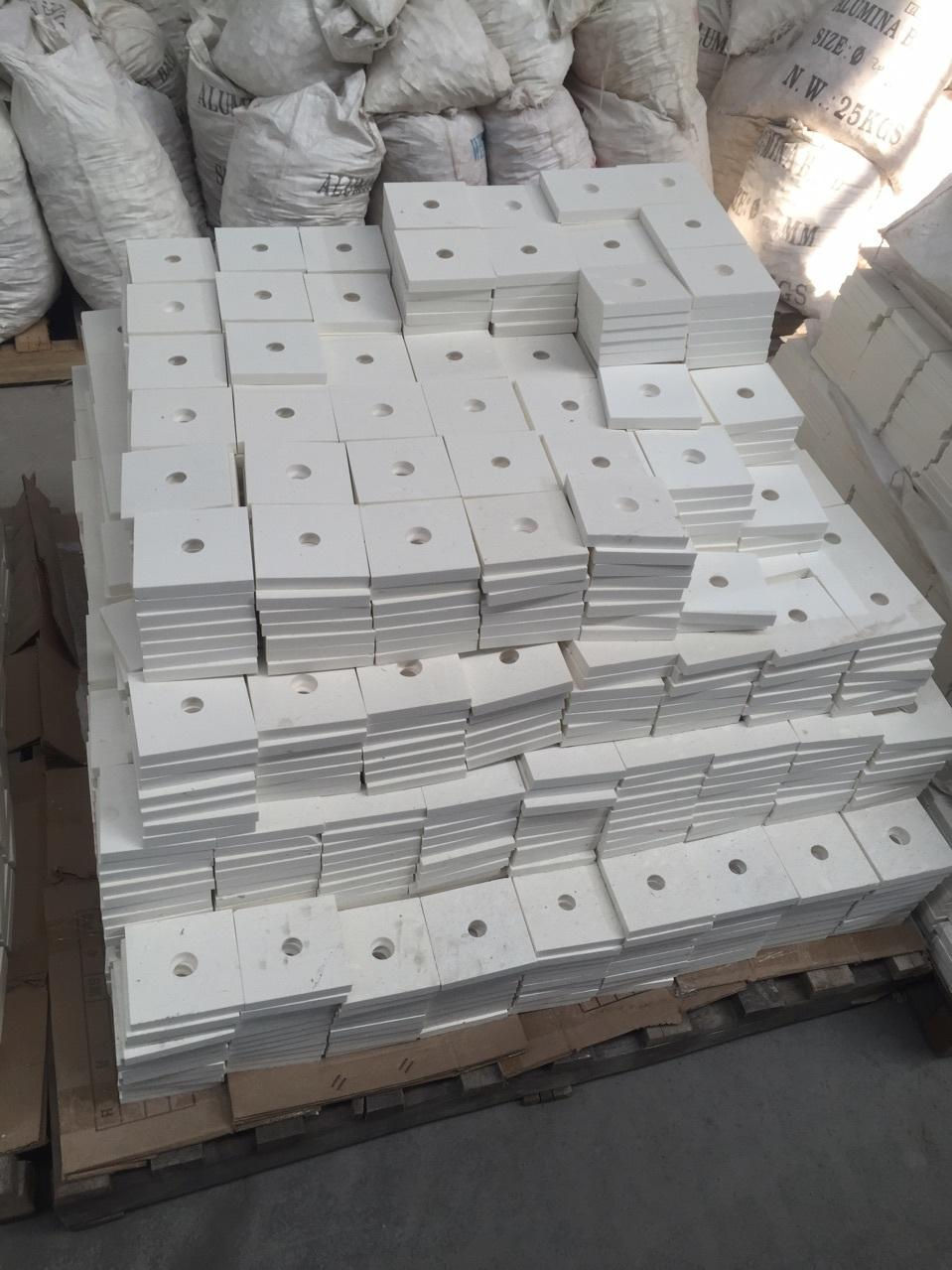

    Alumina Ceramic Lining Tile

    The basic material for ResisTek’s “Wear Resistance Ceramic” is extreme pure synthetic (Alpha) alumina oxide. Today alumina ceramic of 92% purity is the best solution in terms of wear protection performance and material costs. However, other alumina content such 95% and 99% purity is usually custom made by the customers based on each specific conditions, which require either higher purity, impact or hardness for their applications.



    Characteristics

    Good wear resistant property and long service life; smooth surface, low friction coefficient, low density and light weight; resistant to all kinds of acid, alkali and salt; low thermal expansion coefficient and thermal conductivity, operating temperature can be up to 1000 centi-degree.



    Applications Areas:

    • Grinding systems • Mixer Application areas
    • separator systems • chain conveyor
    • cyclones • diffusor
    • pipes • dedusting systems for coal, ash, sinter
    • ducts • sinter slurry ducts
    • Hooper • High temperature cyclones
    • Ventilator housing • salt plants

    We are manufacturing most of tiles such as  plain ceramic tile, weldable tile with cap and steel retainer for  abrasive wear , and cylinderical ceramic, hexgonal tile, small mosaic tile in retangular or in triangle shape for impact wear.
