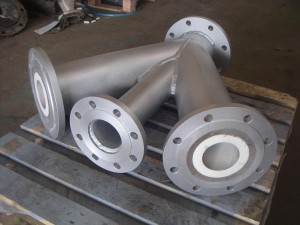

Silicon carbide ceramic lined pipe & elbow

Short Description:

Shandong Zhongpeng Special Ceramics Co., Ltd, is one of the biggest manufacturer of SiSiC in China. Have rich experience on the production of Elbow wear solutions ceramic liner,  pipe, tube, tee, irregular pipes… The advantages of SiC ceramic lined metal composite pipe are as follows: There are essential differences between Shandong Zhongpeng SiC ceramic lining pipe and traditional steel pipe, wear-resistant alloy cast steel pipe, cast stone pipe and steel, rubber pipe and so on. The o...


  • Port: Weifang or Qingdao
  • New Mohs hardness: 13
  • Main raw material: Silicon Carbide
  • Product Detail

    ZPC - silicon carbide ceramic manufacturer

    Product Tags

    Shandong Zhongpeng Special Ceramics Co., Ltd, is one of the biggest manufacturer of SiSiC in China. Have rich experience on the production of Elbow wear solutions ceramic liner,  pipe, tube, tee, irregular pipes…

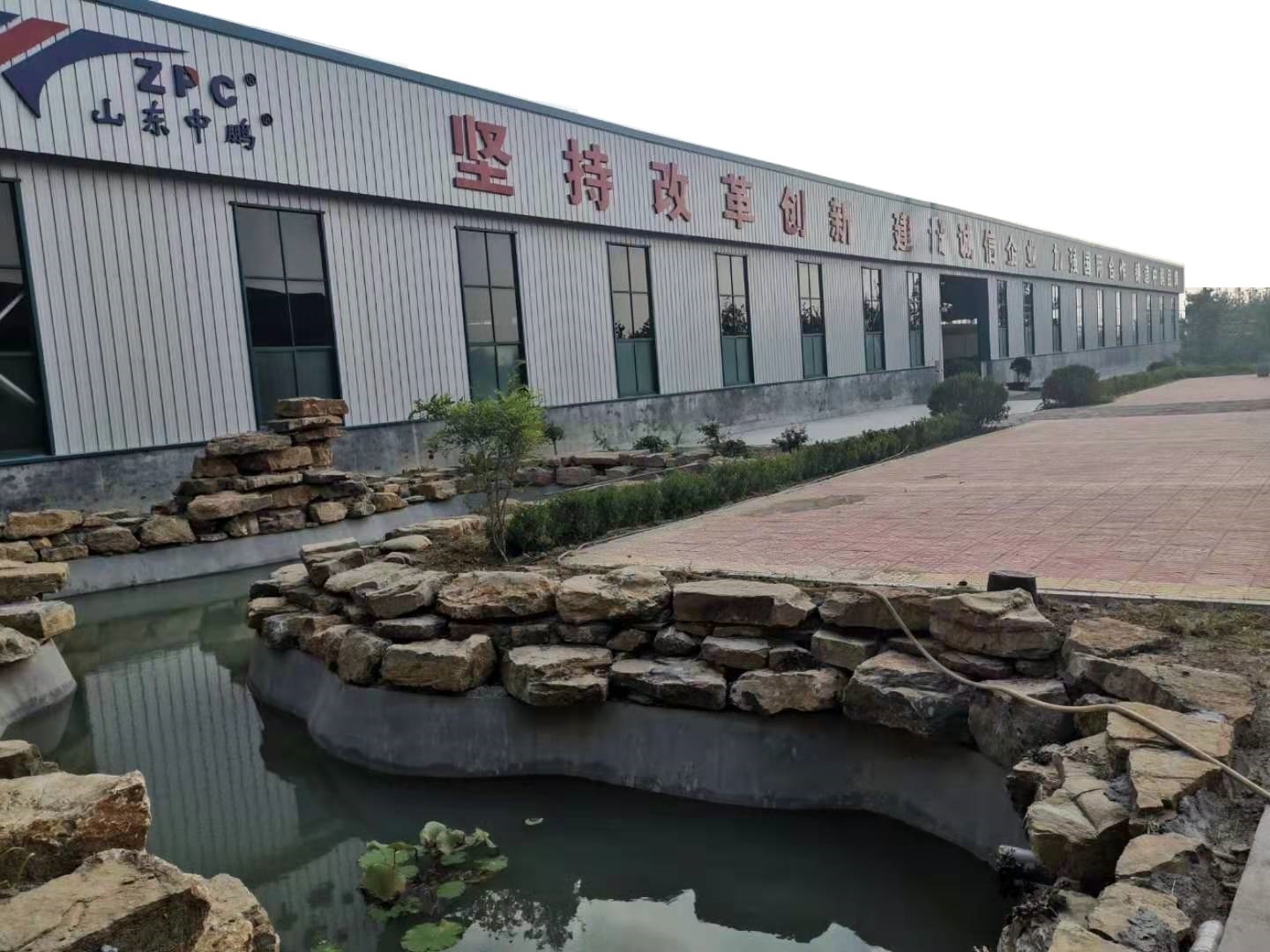

    1. Factory View

    The advantages of SiC ceramic lined metal composite pipe are as follows:

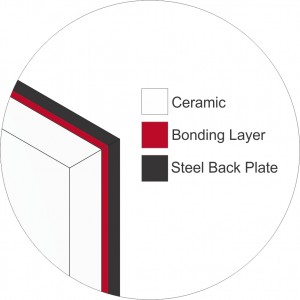

    There are essential differences between Shandong Zhongpeng SiC ceramic lining pipe and traditional steel pipe, wear-resistant alloy cast steel pipe, cast stone pipe and steel, rubber pipe and so on. The outer layer of the lined ceramic pipe is steel, and the inner layer is silicon carbide ceramic. The new Mohs hardness of SiC is as high as 13. The wear resistance is more than 30 times higher than that of ordinary carbon steel pipe.

    1. High strength: steel body of different materials can be used for the outer wall of composite steel pipe according to different needs. Under the support of outer wall steel pipe, the high strength requirements of each process are fully met.

    2. High wear resistance: silicon carbide ceramics with high temperature resistance, wear resistance and corrosion resistance are used on the inner wall of steel pipe, so the product has excellent comprehensive performance.

    3. High corrosion resistance: made of new silicon carbide material, it can be widely used in places containing acid, alkali and salt.

    4. High bonding strength: the matrix of the composite is made of organic polymer. On the basis of inorganic ceramics as reinforcing agent, the bonding is carried out under the environment of specific temperature, pressure and appropriate vacuum. At the same time, with the inner wall of the steel pipe, the peeling strength can reach 14-16 MP, which is more than 100 times of the ordinary lining pipe.

    5. Heat resistance: This product can be used in 1300 ℃ for a long time. It can be as high as 1380 degrees. This product is widely used in environmental protection, electric power, chemical industry, metallurgy, mining and other industries. It is an ideal substitute for special alloy metal pipe under special working conditions.

    In the transportation of special wear-resistant materials or corrosive materials, the pipeline will be damaged too fast, and the elbow wear is the fastest. At present, the practice of dozens of thermal power plants using high wear-resistant ceramic lined steel pipe in our company shows that the ceramic lined steel pipe has strong wear resistance and fluid erosion resistance. In practical application, the wear-resistant layer of the ceramic lining pipe was observed and measured after 1-2 years of service.



    More information, Please contact : Caroline@rbsic-sisic.com

    2345_image_file_copy_22




  • Previous:
  • Next:

  • Shandong Zhongpeng Special Ceramics Co., Ltd is one of the largest silicon carbide ceramic new material solutions in China.  SiC technical ceramic: Moh’s hardness is 9 (New Moh’s hardness is 13), with excellent resistance to erosion and corrosion, excellent abrasion – resistance and anti-oxidation. SiC product’s service life is 4 to 5 times longer than 92% alumina material. The MOR of RBSiC is 5 to 7 times that of SNBSC, it can be used for more complex shapes. The quotation process is quick, the delivery is as promised and the quality is second to none. We always persist in challenging our goals and give our hearts back to society.



    1 SiC ceramic factory 工厂
