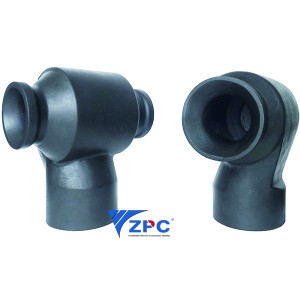

    BT series FGD SiC Desulphuriztion nozzles

    RBSC (SiSiC) desulphurization nozzles are the key parts of flue gas desulphurization system in thermal power plants

    It is the large flow rate single direction nozzle:



    Vortex Spray Nozzle Parameter List   涡流喷嘴技术参数表
    尺寸Size
    (inch)
    喷雾角度
    Spray Angle
    连接方式
    Connection Type
    入口直径Inlet diameter
    (mm)
    出口直径Outlet diameter
    (mm)
    压力 (bar) 流量(m3/h)   Flow (m3/h)
    60° 90° 120° 螺纹连接
    Threaded
    法兰
    Flange
    缠绕连接
    Bonded
    0.2 bar 0.3 bar 0.5 bar 0.7 bar 1 bar 1.5 bar 2 bar 3 bar 4 bar 7 bar
     1/2 11.1 7.9 0.44 0.54 0.7 0.82 0.98 1.2 1.38 1.68 1.98 2.58
    9.9 0.58 0.71 0.92 1.09 1.32 1.62 1.86 2.28 2.64 3.48
    11.9 0.73 0.89 1.16 1.38 1.62 1.98 2.34 2.82 3.24 4.32
    13.9 1.03 1.26 1.62 1.92 2.28 2.82 3.24 3.96 4.56 6.06
     3/4 14.3 9.1 0.58 0.71 0.92 1.09 1.32 1.62 1.86 2.28 2.64 3.48
    10.7 0.73 0.89 1.16 1.38 1.62 1.98 2.34 2.82 3.24 4.32
    12.3 0.88 1.07 1.38 1.62 1.98 2.4 2.76 3.42 3.9 5.16
    13.9 1.03 1.26 1.62 1.92 2.28 2.82 3.24 3.96 4.56 6.06
    16.7 1.44 1.8 2.34 2.76 3.24 4.02 4.62 5.64 6.54 8.64
    1 17.5 11.5 1.03 1.26 1.62 1.92 2.28 2.82 3.24 3.96 4.56 6.06
    12.7 1.17 1.44 1.86 2.16 2.64 3.18 3.72 4.5 5.22 6.9
    14.3 1.32 1.62 2.1 2.46 2.94 3.6 4.14 5.1 5.88 7.8
    15.5 1.44 1.8 2.34 2.76 3.24 4.02 4.62 5.64 6.54 8.64
    17.5 1.74 2.16 2.76 3.3 3.9 4.8 5.52 6.78 7.86 10.4
    20.6 2.22 2.7 3,48 4.08 4.92 6 6.96 8.52 9.78 12.9
    1 1/4 21.4 14.3 1.44 1.8 2.34 2.76 3.24 4.02 4.62 5.64 6.54 8.64
    16.3 1.74 2.88 2.76 3.3 3.9 4.8 5.52 6.78 7.86 10.4
    18.3 2.04 2.52 3.24 3.84 4.56 5.58 6.48 7.92 9.18 12
    20.2 2.34 2.94 3.72 4.38 5.22 6.42 7.38 9.06 10.4 13.8
    24.2 2.94 3.6 4.62 5.46 6.54 7.98 9.24 11.3 13.2 17.4
    1 1/2 27.8 17.5 2.34 2.94 3.72 4.38 5.22 6.42 7.38 9.06 10.4 13.8
    21.8 2.94 3.6 4.62 5.46 6.54 7.98 9.24 11.3 13.2 17.4
    25.8 3.66 4.5 5.76 6.84 8.16 10 11.6 14.1 16.2 21.6
    28.6 4.38 5.4 6.69 8.22 9.72 12 13.8 17.1 19.5 25.8
    2 36.5 27 5.1 6.24 8.1 9.6 11.5 14.1 16.2 19.8 22.8 30
    30.2 5.82 7.14 9.24 10.9 13.2 15.9 18.6 22.5 26.1 34.8
    32.9 6.6 8.04 10.4 12.3 14.7 18 20.7 25.5 29.4 39
    36.1 7.32 8.94 11.6 13.8 16.2 20.1 23.1 28.2 32.4 43.2
    39.7 8.76 10.7 13.8 16.5 19.5 24 27.6 34.2 39 51.6
    2 1/2 47.6 36.1 8.76 10.7 13.8 16.5 32.1 24 27.6 34.2 39 51.6
    40.5 10.3 12.6 16.2 19.2 22.8 27.9 32.4 39.6 45.6 60.6
    44.1 11.7 14.4 18.6 21.9 26.1 32.1 37.2 45 52.2 69
    47.6 13.2 16.2 20.7 24.6 29.4 36 41.4 51 58.8 78
    50.8 14.7 18 23.1 27.3 32.4 40.2 46.2 56.4 65.4 86.4
    3 57.2 52.4 17.4 21.6 27.6 33 39 48 55.2 67.8 78.6 104
    58.7 20.4 25.2 32.4 38.5 45.6 55.8 64.8 79.2 91.8 121
    4 79 2/5 50.8 21.9 27 34.8 41.4 49.2 60 69.6 85.2 97.8 130
    59.1 25.5 31.5 40.2 48.3 57 70.2 81 99 115 151
    68.3 29.1 36 46.2 54.6 65.4 79.8 92.4 113 131 173
    74.6 33 40.5 52.2 61.5 73.8 90 104 127 147 194
    82.6 36.6 45 57.6 68.4 81.6 100 116 142 163 216
    92.1 40.2 49.5 63.6 75.6 90 110 127 156 180 238

    In the 21st century industries world wide will face increasing demands for cleaner, more efficient operations.

    ZPC company is committed to doing our part to protect the environment. ZPC specializes in spray nozzle design and technological innovation for the pollution control industry. Through higher spray nozzle efficiency and reliability, lower toxic emissions into our air and water are now being achieved. BETE’s superior nozzle designs feature reduced nozzle plugging, improved spray pattern distribution, lengthened nozzle life, and increased reliability and efficiency.

    This highly efficient nozzle produces the smallest droplet diameter at the lowest pressure resulting in reduced power requirements for pumping.

    ZPC has:

    • The broadest line of spiral nozzles including improved clog-resistant designs, wider angles, and a complete range of flows.

    • A full range of the standard nozzle designs: tangential inlet, whirl disk nozzles, and fan nozzles, as well as low- and high-flow air atomizing nozzles for quench and dry scrubbing applications.

    • Unparalleled ability to design, manufacture and deliver customized nozzles. We work with you to meet the toughest government regulations. We can meet your special requirements, helping you to achieve optimum system performance.

    Brief Description of FGD Scrubber Zones

    Quench:

    In this section of the scrubber, the hot flue gases are reduced in temperature before entering the pre-scrubber or absorber. This will protect any heat sensitive components in the absorber and reduce the volume of the gas, thereby increasing the residence time in the absorber.

    Pre-Scrubber:

    This section is used to remove particulates, chlorides, or both from the flue gas.

    Absorber:

    This is normally an open spray tower that brings the scrubber slurry into contact with the flue gas, allowing the chemical reactions that tie up the SO 2 to take place in the sump.

    packing:

    Some towers have a packing section. In this section, the slurry is spread on loose or structured packing in order to increase the surface in contact with the flue gas.

    Bubble Tray:

    Some towers have a perforated plate above the absorber section. Slurry is deposited evenly on this plate, which both equalizes the gas flow and provides surface area in contact with the gas.

    Mist Eliminator:

    All wet FGD systems generate a certain percentage of extremely fine droplets that are carried by the movement of the flue gas toward the tower exit. The mist eliminator is a series of convoluted vanes that trap and condense the droplets, allowing them to be returned to the system. In order to maintain high droplet removal efficiency, the mist eliminator vanes must be cleaned periodically.
